Task 1 - No Token Left Behind - (File Forensics)
Aaliyah is showing you how Intelligence Analysts work. She pulls up a piece of intelligence she thought was interesting. It shows that APTs are interested in acquiring hardware tokens used for accessing DIB networks. Those are generally controlled items, how could the APT get a hold of one of those? DoD sometimes sends copies of procurement records for controlled items to the NSA for analysis. Aaliyah pulls up the records but realizes it’s in a file format she’s not familiar with. Can you help her look for anything suspicious. If DIB companies are being actively targeted by an adversary the NSA needs to know about it so they can help mitigate the threat. Help Aaliyah determine the outlying activity in the dataset given

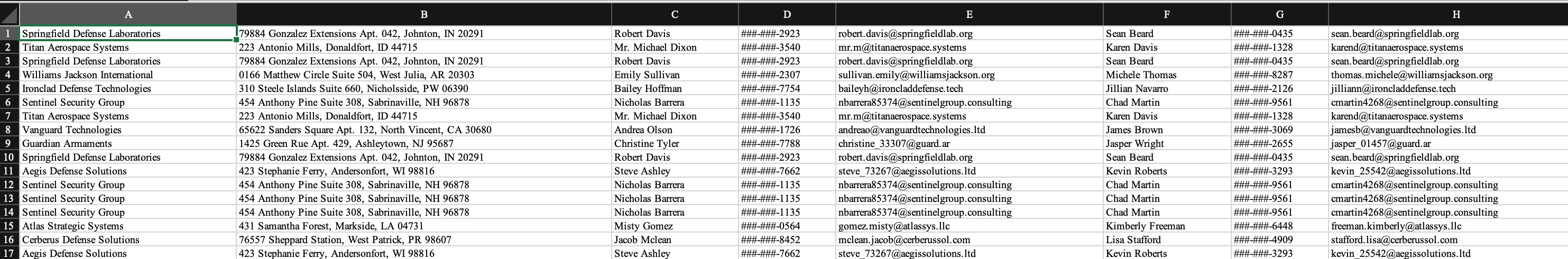

We are provided with an “unknown” file called shipping.db. Running file shipping.db just reveals it to be a ZIP archive, and when unzip shipping.db, we see a bunch of XML. This hinted me towards it being some Microsoft Office file format since they’re just XML wrapped in zips. To confirm, I used Google’s magika which is a neural network that is trained on file formats. Using magika shipping.db revealed it to be an ODS file. So, I renamed the file to shipping.ods and opened it in Excel.
My intuition here was: “What would a malicious user modify in a PO?” and “How would we detect it?“. Modifying something like the email or phone doesn’t help an attacker. But a delivery address would— it would allow them to receive the shipment. How do we detect it? Well, the shipment address would be different than the other entries for the same company. So, I wrote a Python script using pandas to automate the search:
import pandas as pd
# Determine filetype is ods based on `magika shipping.db`
# Rename to `ship.ods`
df = pd.read_excel('ship.ods', engine='odf', header=None)
# Get 'Shipping Address' column
shipping = df[1]
# Find only row with single occurrence
# This indicates the shipping address doesn't match the expected for that customer
single_occurrence = shipping[shipping.map(shipping.value_counts()) == 1]
# Get row with that single occurrence
malicious_row = df[df[1] == single_occurrence.values[0]]
# Get order ID
order_id = malicious_row[8]
print(order_id)And we were able to find one entry that had a different shipment address compared to all the others!
Task 2 - Driving Me Crazy - (Forensics, DevOps)
Having contacted the NSA liaison at the FBI, you learn that a facility at this address is already on a FBI watchlist for suspected criminal activity. With this tip, the FBI acquires a warrant and raids the location. Inside they find the empty boxes of programmable OTP tokens, but the location appears to be abandoned. We’re concerned about what this APT is up to! These hardware tokens are used to secure networks used by Defense Industrial Base companies that produce critical military hardware. The FBI sends the NSA a cache of other equipment found at the site. It is quickly assigned to an NSA forensics team. Your friend Barry enrolled in the Intrusion Analyst Skill Development Program and is touring with that team, so you message him to get the scoop. Barry tells you that a bunch of hard drives came back with the equipment, but most appear to be securely wiped. He managed to find a drive containing what might be some backups that they forgot to destroy, though he doesn’t immediately recognize the data. Eager to help, you ask him to send you a zip containing a copy of the supposed backup files so that you can take a look at it. If we could recover files from the drives, it might tell us what the APT is up to. Provide a file with unique SHA256 hashes of all files you were able to find from the backups.
We’re provided with archive.tar.bz2 so let’s first extract it with tar -xvjf archive.tar.bz2. We end up with a bunch of logseq* files, and if we run file:
file logseq*
...
logseq77252293125371: ZFS snapshot (little-endian machine), version 17, type: ZFS, destination GUID: 2A 04 FFFFFFED FFFFFFDC FFFFFFC2 FFFFFF96 FFFFFFE9 FFFFFF89, name: 'wjcppool/qdfs@logseq77252293125371'
...So, looks like we have some ZFS snapshots. My first thought was to just binwalk the snapshots and grab the SHA256 hash(es) of any extracted files. I did this using binwalk -eM --dd=".*" logseq* and a python script to recursively open all the _logseq*_extracted folders that binwalk generates, but my answer was incorrect. I figured it would be incorrect, but thought maybe I could get a quick win 😦 So, I guess I’ll need to do legitimate ZFS snapshot recovery. I spun up an AWS EC2 instance, created a new volume, and attached it to the instance. Then, I got ZFS up and running:
sudo apt install zfsutils-linux
sudo zpool create wjcppool /dev/xvdf
sudo zfs create wjcppool/qdfsNow, I have a pool and filesystem that matches the ZFS snapshots. Now, I just need to get the base snapshot and order the incremental snapshots. Doing some quick grep-fu, I was able to order the snapshots from earliest to latest.
grep -ain "January 02" logseq*
grep -ain "January 03" logseq*
grep -ain "January .." logseq*
grep -ain "January 30" logseq*Jan 2 logseq11688836119012-i
Jan 3 logseq286942769432268-i
Jan 4 logseq209932396930821-i
Jan 5 logseq27136158271647-i
Jan 6 logseq29171777129512-i
Jan 7 logseq102452543011321-i
Jan 8 logseq2468511167737-i
Jan 9 logseq32881554713545-i
Jan 10 logseq24796312017972-i
Jan 11 logseq55853168410708-i
Jan 12 logseq11027531712611-i
Jan 13 logseq15803315518981-i
Jan 14 logseq290492998122354-i
Jan 15 logseq259992022729275-i
Jan 16 logseq24965400441-i
Jan 17 logseq16205262583362-i
Jan 18 logseq21208259776628-i
Jan 19 logseq18162965925393-i
Jan 20 logseq213721945032207-i
One thing to note here is that originally, is that January 13 never appeared via grep. I just saw that we only had 18 dates out of 19 logseq*-i files and Jan 13 was the one missing. Now, we can start receiving these snapshots. First, we need the base snapshot which I assumed was logseq77252293125371 since there is no -i suffix.
sudo zfs recv wjcppool/qdfs@logseq77252293125371 -F < logseq77252293125371Now, I just need to receive each incremental snapshot and get all SHA256 hashes of any files that are contained.
import os
import subprocess
cwd = '/wjcppool/qdfs/'
hashes = []
# get all folders recursively
folders = [x[0] for x in os.walk(cwd)]
folders = folders[1:]
print(folders)
for folder in folders:
# get sha256 hash of all files in the folder
files = os.listdir(os.path.join(cwd, folder))
for file in files:
# Make sure it's a file and not a directory
file_path = os.path.join(cwd, folder, file)
if not os.path.isfile(file_path):
continue
print(file_path)
sha256 = subprocess.check_output(['sha256sum', file_path]).decode().split()[0]
hashes.append(sha256)
# get unique hashes
hashes = list(set(hashes))
print('\n'.join(hashes))sudo zfs recv wjcppool/qdfs@logseq11688836119012 -F < logseq11688836119012-i
python3 hashes.py
sudo zfs recv wjcppool/qdfs@logseq286942769432268 -F < logseq286942769432268-i
python3 hashes.py
...
sudo zfs recv wjcppool/qdfs@logseq213721945032207 < logseq213721945032207-i
python3 hashes.pyLastly, I just removed duplicate hashes and now we have a list of all the unique files we were able to extract from the ZFS snapshots! Could have scripted it out also, but this worked just as good.
edit: Created an automation script for this.
import os
import subprocess
snapshots = [
"logseq11688836119012-i",
"logseq286942769432268-i",
"logseq209932396930821-i",
"logseq27136158271647-i",
"logseq29171777129512-i",
"logseq102452543011321-i",
"logseq2468511167737-i",
"logseq32881554713545-i",
"logseq24796312017972-i",
"logseq55853168410708-i",
"logseq11027531712611-i",
"logseq15803315518981-i",
"logseq290492998122354-i",
"logseq259992022729275-i",
"logseq24965400441-i",
"logseq16205262583362-i",
"logseq21208259776628-i",
"logseq18162965925393-i",
"logseq213721945032207-i"
]
# Base snapshot
subprocess.run("zfs create wjcppool/qdfs", shell=True)
subprocess.run("zfs recv -F wjcppool/qdfs@logseq77252293125371 < logseq77252293125371", shell=True)
hashes = []
cwd = '/wjcppool/qdfs/'
os.makedirs("./extracted", exist_ok=True)
for snapshot in snapshots:
cmd = f"zfs recv -F wjcppool/qdfs@{snapshot[:-2]} < {snapshot}"
subprocess.run(cmd, shell=True)
# get all folders recursively
folders = [x[0] for x in os.walk(cwd)]
folders = folders[1:]
print(folders)
for folder in folders:
files = os.listdir(os.path.join(cwd, folder))
for file in files:
file_path = os.path.join(cwd, folder, file)
if not os.path.isfile(file_path): continue
print(file_path)
sha256 = subprocess.check_output(['sha256sum', file_path]).decode().split()[0]
hashes.append(sha256)
# Copy file
os.makedirs(os.path.join("./extracted", snapshot), exist_ok=True)
subprocess.run(f"cp '{file_path}' './extracted/{snapshot}/'", shell=True)
# get unique hashes
hashes = list(set(hashes))
print('\n'.join(hashes))
# reset zfs
cmd = "zfs destroy -r wjcppool/qdfs"
subprocess.run(cmd, shell=True)Task 3 - How did they get in? - (Reverse Engineering, Vulnerability Research)
Great work finding those files! Barry shares the files you extracted with the blue team who share it back to Aaliyah and her team. As a first step, she ran strings across all the files found and noticed a reference to a known DIB, “Guardian Armaments” She begins connecting some dots and wonders if there is a connection between the software and the hardware tokens. But what is it used for and is there a viable threat to Guardian Armaments (GA)? She knows the Malware Reverse Engineers are experts at taking software apart and figuring out what it’s doing. Aaliyah reaches out to them and keeps you in the loop. Looking at the email, you realize your friend Ceylan is touring on that team! She is on her first tour of the Computer Network Operations Development Program. Barry opens up a group chat with three of you. He wants to see the outcome of the work you two have already contributed to. Ceylan shares her screen with you as she begins to reverse the software. You and Barry grab some coffee and knuckle down to help. Figure out how the APT would use this software to their benefit
Got stuck here :(
